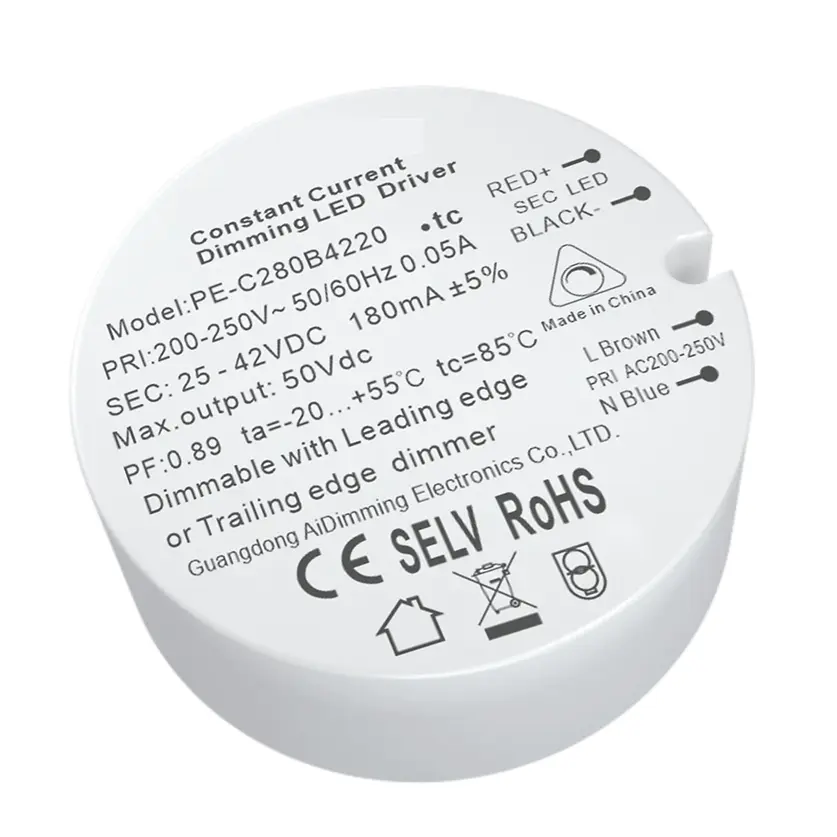

Sina 8.4W Constans Current Triac Dimmable DUXERIT Suppliers Coegi, Manufacturers - Factory Direct Price

Ut opificem professionalem, Starwell velis tibi qualitatem altam praebere 8.4W agitator assidue current triac dimmabilis ducatur, quod est aptum RPC MOSFET obscuriore et FPC TRAIC obscuriore.

Specification

Exemplar		PE-C280B2435	PE-C280B4220	PE-C280B0670	PE-C280B1270	PE-C280B2430
REFERO	Output Voltage	12-24Vdc	25-42Vdc	2.5-6Vdc	6-12Vdc	12-24Vdc
	Max output intentione	24Vdc	42Vdc	6Vdc	12Vdc	24Vdc
	Non-onus output intentione	27Vdc	43Vdc	8Vdc	15Vdc	27Vdc
	Output Current	350mA	200mA	700mA	700mA	300mA
	Output Power	4.2W~8.4W	5W~8.4W	1.75W~4.2W	4.2W~8.4W	3.6W~7.2W
	Strobe Level	Inferius flicker(8%)
	Diming dolor	2~100%，
	PWM Dimming Frequency
	Current Accuracy	±5%
	Ripple & Noise	= 500mv p-p
INPUT	Obscuratio interface	Triac eduxit ore / Tralling in ore gladii
	Input intentione dolor	200-250Vac
	Frequentia	50/60Hz
	Input Current	<0.08A	<0.08A	<0.08A	<0.08A	<0.08A
	Potestas Factor	PF>0.9 (onere plenum)	PF>0.9 (onere pleno)	PF>0.88 (onere plenum)	PF> 0.88 (ad plena onere)	PF> 0.88 (pleno onere)
	THD	230Vac@THD <20% (ad plenum onere)
	Effectus (typ.)	77%	79%	77%	77%	77%
	Incursus Current (typ.)	Frigus start0.8A	Frigus start0.8A	Frigus start1.54A	Frigus start0.8A	Frigus start0.8A
	Anti Surge	L-N: 1.5kV
	ultrices Current	<0.25mA/230Vac
ENVIRONMENT	Operatio Temperature	tc: 55°C tc: 85°C
	opus Umor	20 ~ 95% RH, non-condensans
	Repono Temp., Umor	-40 ~ 80°C, 10~95% RH
	Temp. Coefficiens	±0.03%/°C(0-50)°C
	Vibratio	10~500Hz, 2G 12min./1cyclus, periodus 72min. singulae per axes X, Y, Z.
PRAESIDIUM	Plus-calor Donec	Prudenter accommodans vel avertens in output current si PCB temperatus ≥110°C, , auto recuperat.
	Super Lond Praesidium	Claudite output cum power≥102% aestimavit, auto recuperat.
	Brevis Circuit Praesidium	Automatice claude, si brevis circuitus incidit, auto- rum recuperat.
	Non onus Praesidium	Clausa output si nullum onus, auto- cum onere ad normalem recuperat.
SALUS & EMC	sustinere intentione	I/P-O/P: 3750Vac
	Repugnantia solitudo	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
	Salus Stanards	IEC/EN61347-1, IEC/EN61347-2-13
	EMC Emision	EN55015, EN61000-3-2 Classis C, IEC61000-3-3
	EMC immunitas	EN61000-4-2,3,4,5,6,8,11, EN61547
	Strobe Test Standard	IEEE 1789
ALIIS'	Dimension	43.2×0.5mm(D×H)
	stipare	DE pera
	Pondus(G.W.)	42g±5g

Mercium:

DUXERIT phase-cut dimming coegi, obscurans range 2-100%

Apta RPC MOSFET obscuriora et FPC TRAIC obscuriora

Active PFC

Praesidia: brevis circuitus/per voltage/per current

Silica conductio technologiae caloris, venti naturalis frigidi

Ultra parvum volumen

Apta ad DUXERIT domum illustrandam et commercii lucendi

Tutus non onus praesidium fabrica

conomica et opportuna institutionem

conformes mundo lucendi armorum salutem signa

Praesidium classis II

tribus annis warantiam

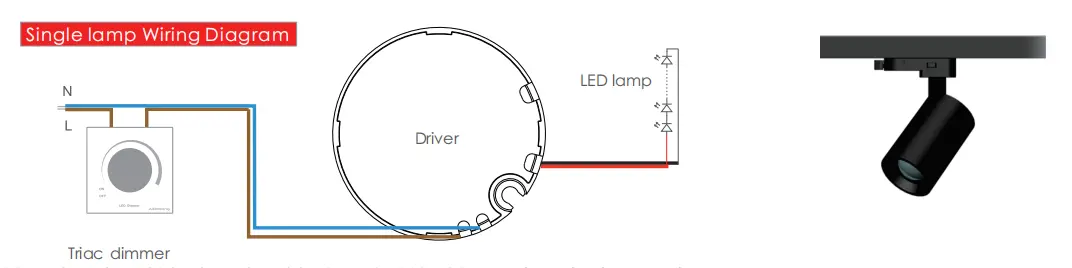

Wiring Diagram:

Wiring:

Filum output: 20AWG funis ruber et niger PVC, longitudo 200-230mm, exigentia filum nudans: 5-7mm

Filum inputationis: 20AW Brown Blue VDE filum insulatum duplex, longitudo 150-160mm, filum exigentiae exigentiae: 5-7mm

Usus regiminis;

1. Aspice quaeso distinctionem inter input et output, recte coniunge, deinde potentia on

2. Quaeso iunge primum onus dc output, aperi vim copiarum, post recognitionem; in mode constanti curante, si potestas in ambitu atpatens, potestatem copiarum averte et LED coniungere non potest, donec vis electa ab output emissione condita, vel ductum laedat;

3. Hoc genus potentiae copia solum ad usum lucernarum et lucernarum ductus est, initus votage amplitudo est AC200-250v, theatrica insaluta bombacio et alia, quae caloris dissipationem obstruunt producti, quae ad productum sub theSpe cified output voltage, current range, usus in ambitu caliditas est -20-45 cararum, et liberae warantiae, hoc est curriculum annorum, et suracitas circumspicere non potest.

Conditiones abnormes et modi curationi respondentes:

1. Lucerna ducta non splendet postquam exactoris cuprea primo tempore coniungitur, AC input prehende ac sequere, quaeso.

a) Utrum contactum mali vel non DC output:

b) Utrum dc output verto vertatur, vel ducatur tabula anti iuncta ;

c) Utrum AC initus malus sit contactus: tempta his defectibus remotis.

2. Fabrica habet nexum bonum, DUCTUS lumina, sed fickerum DUXERIT, quaeso tum averte AC input, tum DC output reprehendo.

a) overroad.sub onere.

b) Utrum parametri et actuales parametri pares sint.

3. Quaeso fimly nobiscum communica si quaestiones in utendo, optimas quaestiones egere tecum conabimur.
