Quid est 60W TUYA Zigbee CCT Dimmable DUXERIT Driver

Starwell officinas qualitas 60W TUYA Zigbee CCT Dimmabilis DUCTUS Coegi est dolor constans intentione DUXERIT potestas copia designata est ad potentiam et imperium tunable album ducatur systemata accendendi. Protocollo Zigbee 3.0 wireless protocollo utitur cum TUYA captiosus ecosystematis coniungere, remotas per apps mobiles vel voce adiutores moderandi accendit.

Hoc genus exactoris permittit utentes ut candorem et colorem temperaturae (CCT) temperatum ex albo calido ad refrigerandum album, servato stabilis potentiae output servato, ut tabulae, adfixa lumina, et downlights.

Key Features

1. Smart Zigbee Imperium

Auriga Zigbee 3.0 communicationem integrat, permittens imperium wireless per TUYA Smart App. Users possunt administrare illustrandas scenas, scheduling, et claritatem commensurationem per smartphones vel dolor systematis domestici.

2. Smooth Dimming et CCT De revolutionibus

60W TUYA Zigbee CCT Dimmable Coegi DUCTUS sustinet 0-100% vibrat liberum hebetare et tunable album lucendi. Utentes splendorem et colorem temperatum accommodare possunt ad varias ambitus illustrandas componendas.

3. Stabilis Electrical euismod

Input intentione: 100-277VAC

Potentia Factor: PF ≥ 0.98

Effectus: Sursum ad XC%

PWM Output Frequency: 4KHz

Hi parametri auxilium firmum conservant in lucendo output et de industria efficientiam ad diuturnum tempus operandi.

4. NFC configurationis Function

Inaedificata in NFC technologia permittit installers ut intentionem intentionis componant et electronicae fabricae configurentur cito durante institutione vel sustentatione.

5. Salutis Praesidium et Testimonia

60W TUYA Zigbee CCT Coegi Dimmable DUXERIT designatus est cum multiplicibus mechanismis praesidio ad operationem stabilem sustinendam.

Munera tutelae complectitur:

Brevis circuitus praesidium

ONERO praesidium

Plus-caliditas shutdown

Lorem recuperatio post culpam remotionem

Productum saluti internationali obtemperat et signis EMC comprehendentibus:

EN61347 signa salutis

UL8750 opus

CE, RoHS, EEC, SAA certificationes

Hae certificationes adiuvant ut convenientiam cum global systematibus illustrandis et requisitis moderantibus adiuvent.

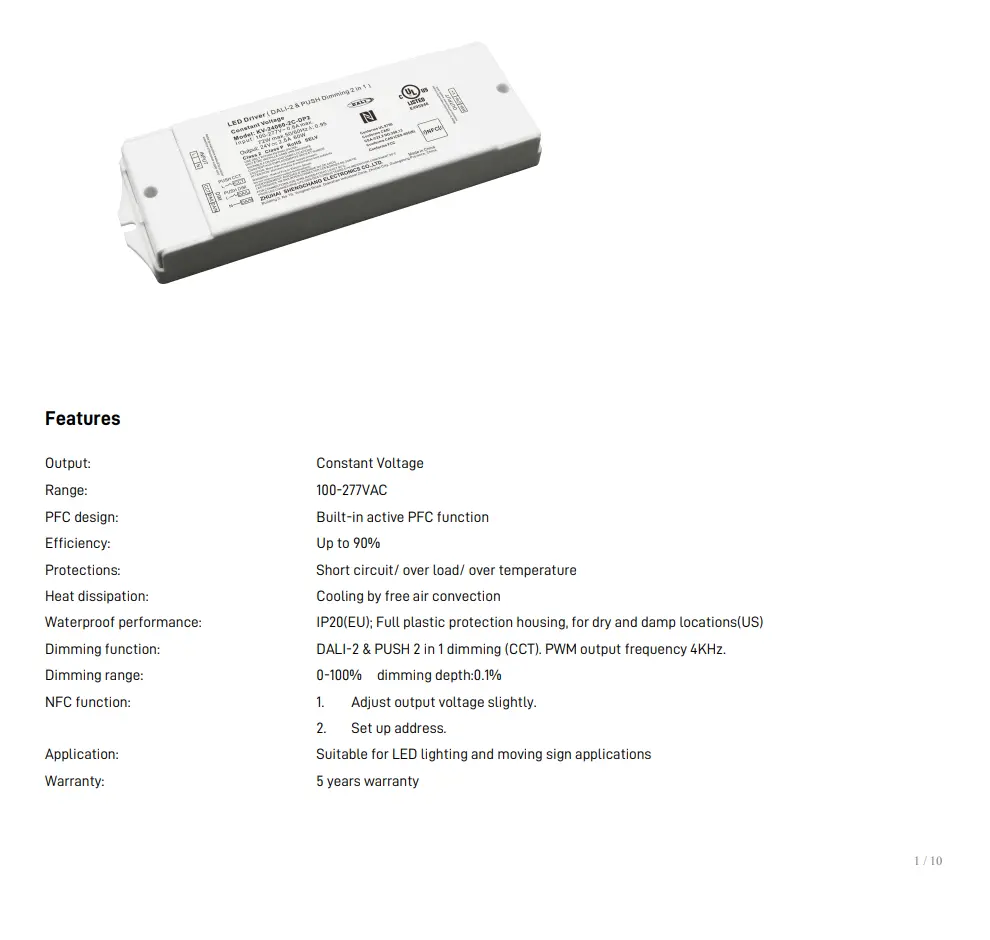

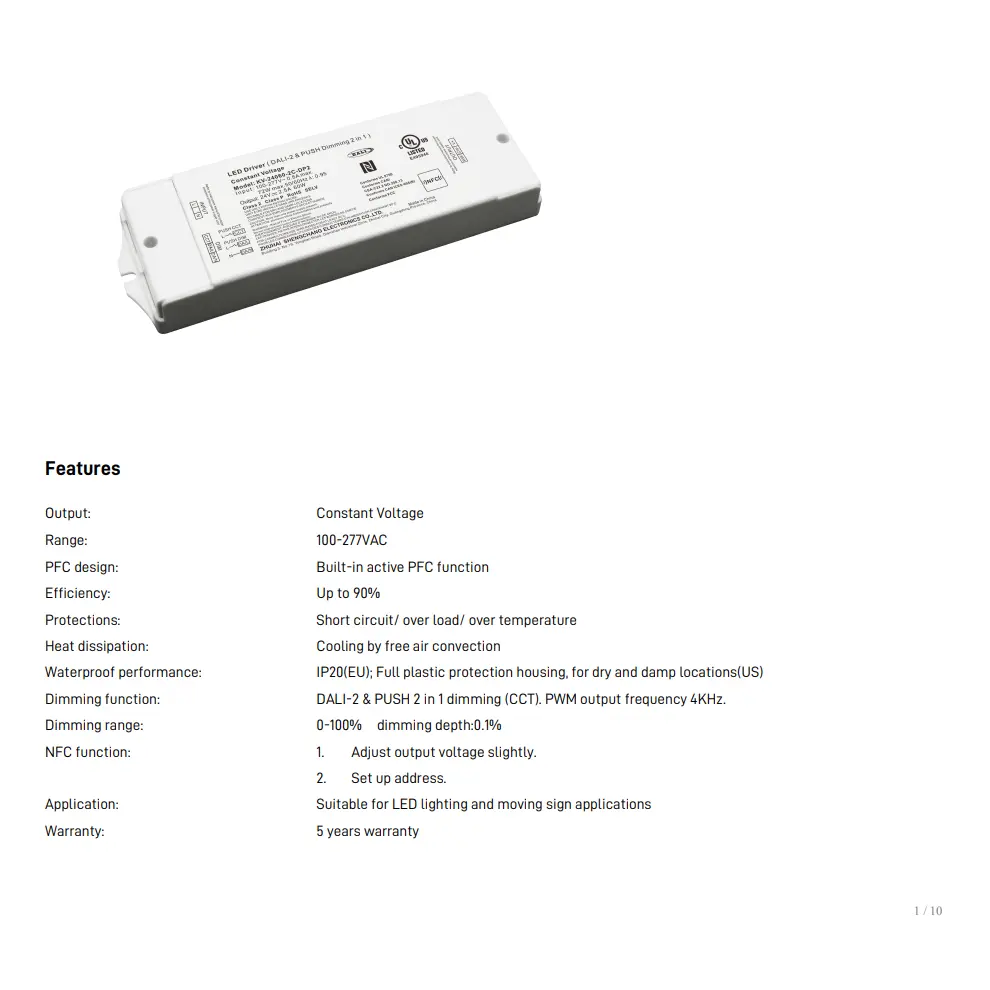

Plus Detail

Constans intentione Range: 100-277VAC

PFC design: inaedificata activae PFC functionis

Effectus: Sursum ad XC%

Praesidia: Brevis circuitus / per onus / per caliditas

Calor dissipationis: refrigerium per liberum aeris convection

IMPERVIUS perficiendi: IP20(EU); Plena plastica tutelae habitationem, pro locis siccis et humidis (US)

Munus obscurans: DALI-2 & CONATUS 2 in 1 obscurante (CCT). PWM output frequentia 4KHz.

Dimming range: 0-100%

profundum obscurante: 0.1%

NFC munus: 1. Adjust output intentione aliquantulum. 2. Erige oratio.

Applicatio: Idonea ad DUXERIT accendendi et movendi signa applicationes

Warranty: 5 years warranty

Product Applicationem

60W TUYA Zigbee CCT Coegi Dimmable DUXERIT late usus est in programmatibus in tectis illustrandis quae callidi temperantiae et obscurationis functiones requirunt.

Typicam applicationes includit:

DUXERIT lumina panel

DUXERIT habena lucendi

Downlights et laquearia luminaria

Dolor domum systemata lucendi

Commercial venientem officinae

Eius compages compacta et habitationi flammea retardatur institutionem convenientem in variis fixturis accensis.

Technical volutpat

Praecipua electrica speciem includit:

Ratum Power: 60W

Output Voltage Options: 12V / 24V / 36V / 48V

Ratum Current: 5A / 2.5A / 1.67A / 1.25A

Temperatus operans: -40°C ad +60°C

Effectus: Sursum ad XC%

IMPERVIUS Rating: IP20

Auriga aeris naturalis refrigeratione utitur et habitationem plasticam plene inclusam aptam ad ambitus tectis tectis siccis vel humidis adhibet.

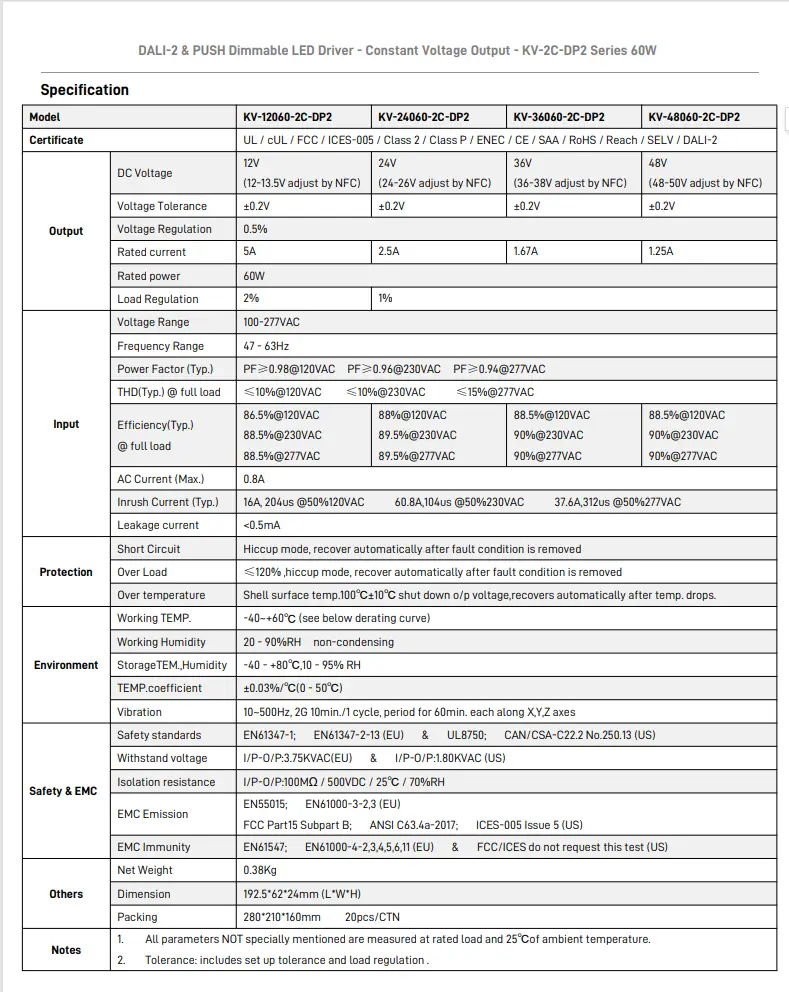

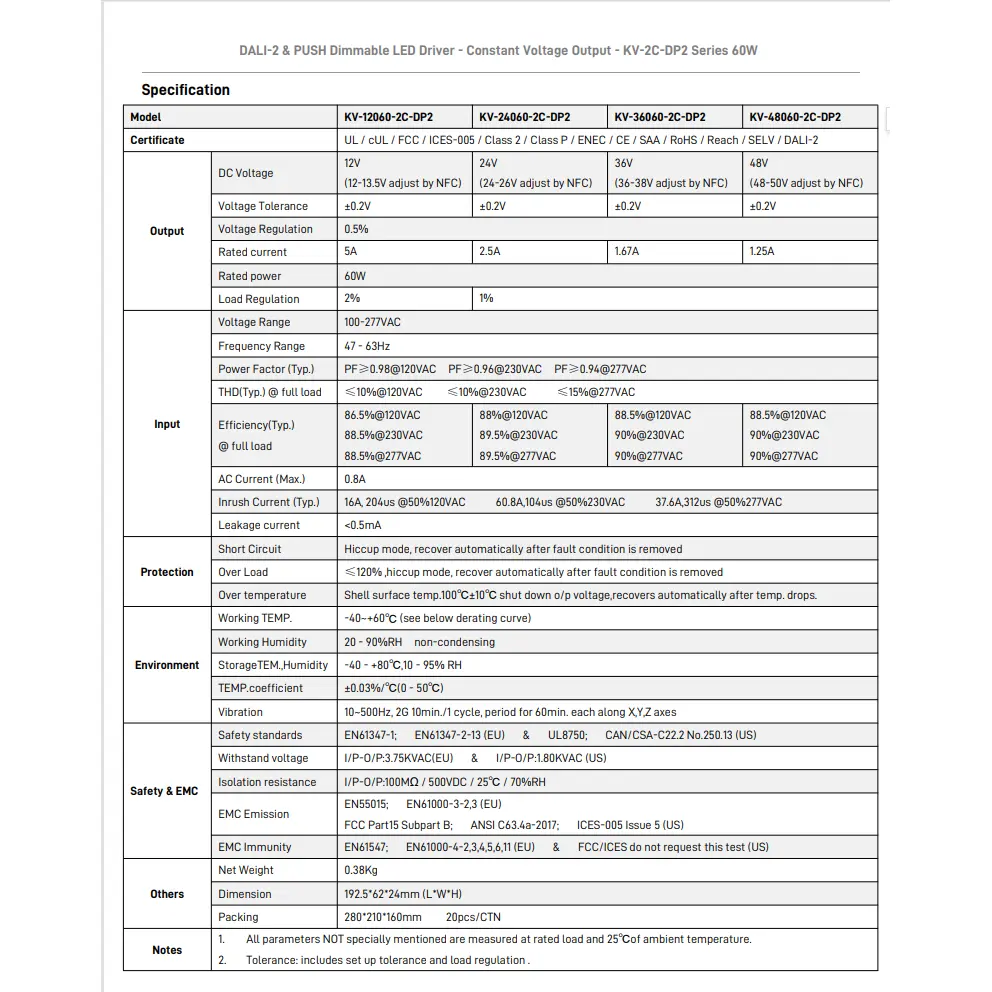

Exemplar		KV-12060-2C-DP2	KV-24060-2C-DP2	KV-36060-2C-DP2	KV-48060-2C-DP2
Testimonium		UL / CUL / FCC / ICES-005 / Classis II / Classis P / Enec / CE / SAA / RoHS / Infer / SELV / DALI-2
Output	DC Voltage	12V (12-13.5V NFC aptet)	24V (24-26V NFC aptet)	36V (36-38V per NFC aptet)	48V (48-50V NFC compone)
	Tolerantia intentione	±0.2V	±0.2V	±0.2V	±0.2V
	Voltage Ordinatione	0.5%
	Ratum current	5A	2.5A	1.67A	1.25A
	Aestimavit potestatem	60W
	Onus Ordinatione	2%	1%
Input	Voltage Range	100-277VAC
	Frequentia Range	47 - 63Hz
	Potentia Factor (Typ.)	PF≥0.98@120VAC PF≥0.96@230VAC PF≥0.94@277VAC
	THD (Typ.) @ onus plenum	≤10%@120VAC ≤10%@230VAC ≤15%@277VAC
	Efficientia (Typ.) @ onus plenum	86.5%@ 120VAC 88.5%@230VAC 88.5%@277VAC	88%@120VAC 89.5%@230VAC 89.5%@277VAC	88.5%@120VAC 90%@230VAC 90%@277VAC	88.5%@120VAC 90%@230VAC 90%@277VAC
	AC Current (Max.)	0.8A
	Incursus Current (Typ.)	16A, 204us @50%120VAC 60.8A,104us @50%230VAC 37.6A,312us @50%277VAC
	Lacus current	<0.5mA
Praesidium	Brevis Circuit	Singultus modus, automatice post culpam condicionem remotam recupera
	Plus Load	≤120%, singultus modus, automatice recuperet, post culpam condicionem remotam
	Plus temperatus	Testa superficies temp.100℃±10℃ o/p intentione clausa, automatice post temp. guttae.
Environment	AD OPERA TEMP.	-40~ + 60℃ (vide infra derating curvae)
	opus Umor	20 - 90% RH non-condensatione
	StorageTEM., Humidity	-40 - +80℃,10 - 95% RH
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
	Vibratio	10~500Hz, cyclus 2G 10min./1, periodus 60min. inter se per X, Y, Z secures
Salus & EMC	salus signa	EN61347-1; EN61347-2-13 (EU) & UL8750; CAN/CSA-C22.2 No.250.13 (US)
	sustinere voltage	I/P-O/P:3.75KVAC(EU) & I/P-O/P:1.80KVAC(US)
	Repugnantia solitudo	I/P-O/P:100MΩ/500VDC/25℃/70%RH
	EMC Emission	EN55015; EN61000-3-2,3 (EU) FCC Part15 Subpart B; ANSI C63.4a-2017; ICES-005 Part 5 (US)
	EMC immunitas	EN61547; EN61000-4-2,3,4,5,6,11 (EU) & FCC/ICES Hoc experimentum noli petere (US)
alii	Net Pondus	0.38Kg

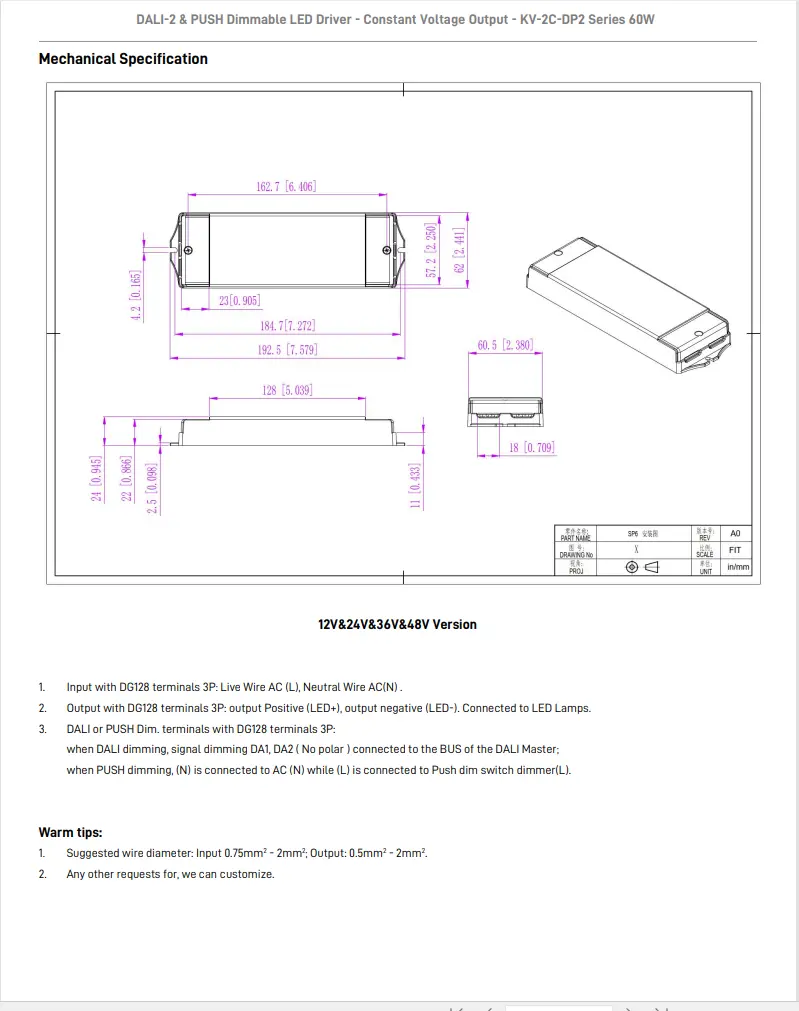

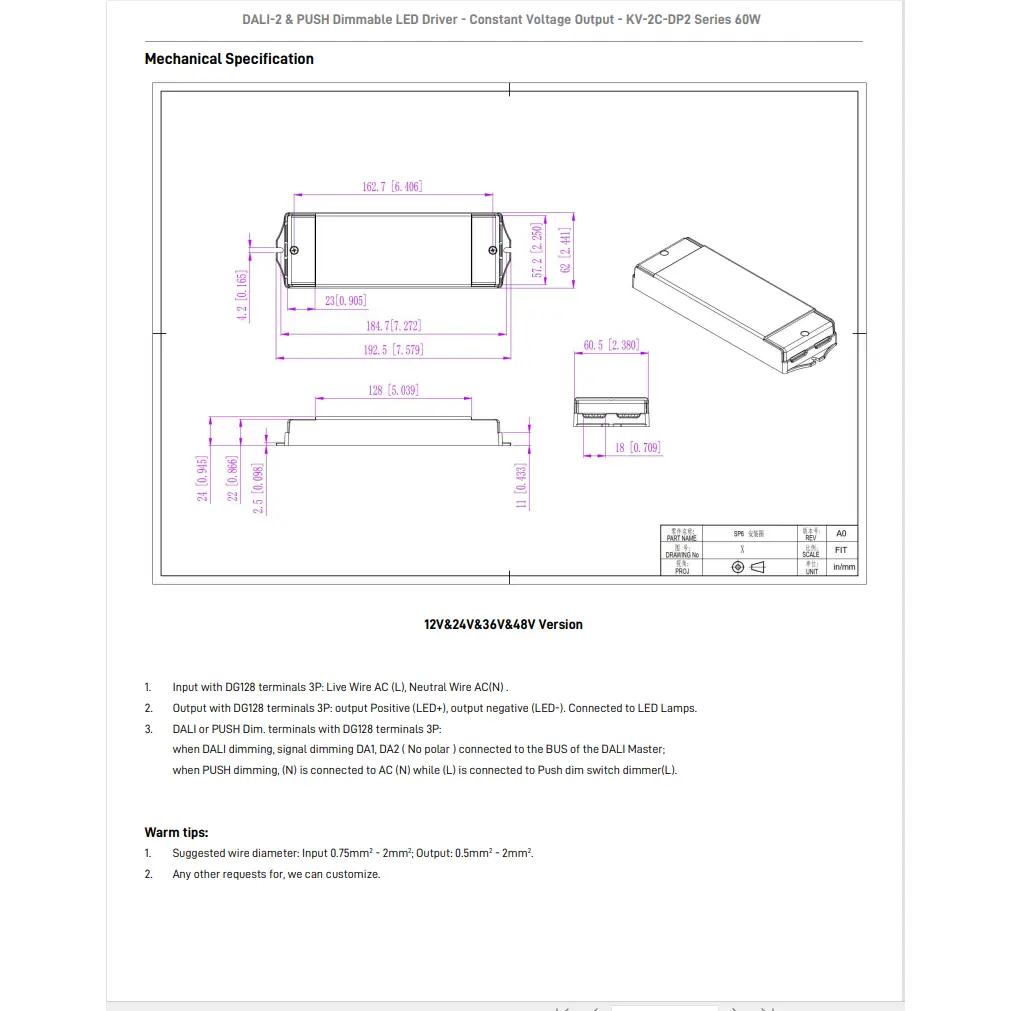

	Dimension	192.56224mm (LWH)
	stipare	280210160mm 20pcs/CTN
Notae	1. Omnes parametri proprie nominati tantum et 25 ambientium temperatura metiuntur. 2. Tolerance: includes set up tolerance and load regulation .
