24W Wall Mounted POE Injector

STARWELL princeps professionalis Sinarum 24W Wall Eques POE Injector artifices cum magno qualitate et rationabili pretio. Varias rates transmissiones inclusas 10/100/1000M/2.5G/5G/10G sustinet, signis IEEE 802.3.af/at/bt POE++ obtemperans.

Features:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A

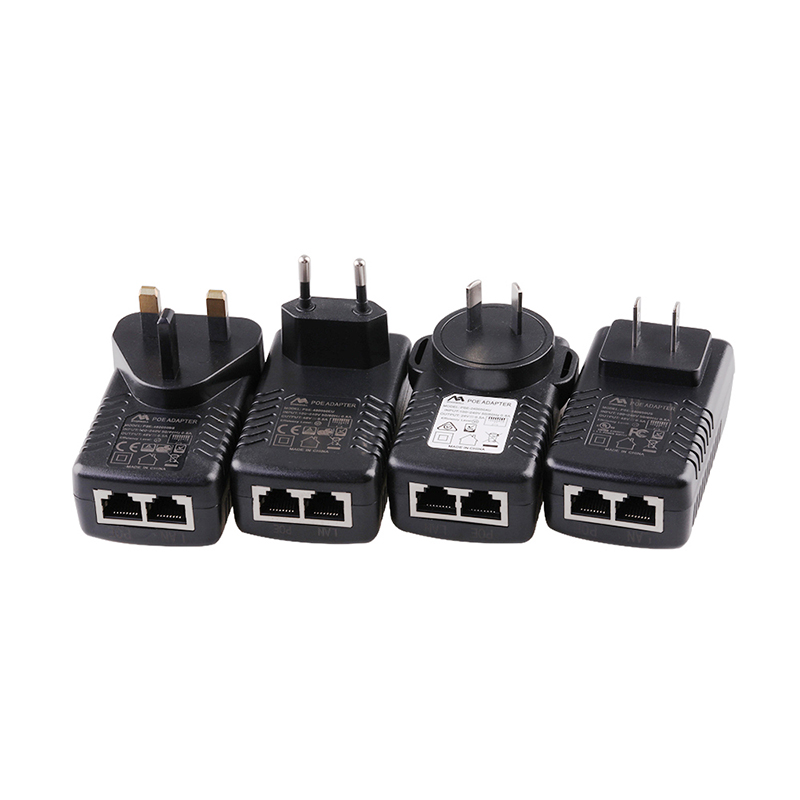

Plug type: US/CN/EU/UK/AUS obturaculum optional
Testimonia: UL, CE, FCC, TUV, UKCA
DC PORT: 2RJ45: Portus 1: LAN, Portus 2: POE
Genus Protocol: POE passivus vel POE Active ad libitum
POE paxillus: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4pairs1,2,4,5(+) 3,6,7,8 (-)
Protocol: Compatible cum IEE802.3af/IEEE802.3at
Data Speed: 10/100/1000M/2.5G/5G/10G bps (libitum)
size: 8446.9* 31.7mm(excludere obturaculum)

Mitte Inquisitionem

STARWELL celeber et professio 24W Wall POE Injector opificem in Sinis insitum est. Notae sunt producendi qualitates productos rationabiles pretia.

Injectores nostri POE ordinantur ut amplis rates transmissionis sustineant, inter 10/100/1000M/2.5G/5G/10G. Haec flexibilitas permittit ut integrationem inconsutilem cum diversis Aernet machinis, firmam potestatem et datam tradendi rationem praebens.

Secundum signa obsequii STARWELL POE injectores in IEEE 802.3.af/at/bt POE ++ signa adhaerent. Hoc efficit compatibilitatem cum variis POE machinis parabilibus, partum efficientem praebens ac functionem faciens ut remota fabrica administratione ac magna vigilantia.

STARWELL munus qualitatis relucet in processibus fabricandis et agendis probationibus strictioris. Studeant fructus tradere qui signa industriae convenientes vel excedunt, certas operationes et longitudinis cursus procurans.

Cum suis focus in summus qualitas fabricandi, auctor cursus sapien, et adhaesio ad signa industriae, STAWELL se constituit ut creditus provisor POE injectores in foro. Producta eorum late adhibentur in applicationibus sicut systemata securitatis, IP cameras, puncta wireless accessus, et phones VoIP, inter alia.

STARWELL 24W Wall Eques POE Injector Specification:

Item		5W 12W 18W 24W POE Virtutis Adaptor, POE Injector, Potestas Aer iter itineris, Potestas Aer nibh
Model		PSE-xxxyyyw
INPUT		100-240VAC 50/60Hz
Output		12V	15V	18V	24V	48V	56V
		0-2A	0-1.6A	0-1.33A	0-1.0A	0-5A	0.4A
Features	Ripple & Noise	<120mV
	Energy stella gradu	Eup 2.0, Doe VI, CEC VI, CoC VI .
	Efficientia	>88%
	Installing	Praesto est systema Safety Classis I/II
Environment	Operatio Temp	-10~ +65℃, 10~95% RH non-condensans
	Repono Temp	-20 ~ +85℃ (Refer ad "Curvam Derate")
	Repono Umor	20~ 90% RH non-condensans
	Vibratio	10~ 500Hz, 2G 10min./1cyclus, 60min. singulae per axes X, Y, Z
	Refrigerationem Methodo	per NTC (naturalem refrigerationem)
Salus&EMC	Salus Standard	UL62368, ETL62368, EN62368, EN61558
	Salus Approvals	UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC in pluribus informationes, pete nobis.
	EMC Stardard	EMC EMISSION: EN55032 classis B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITAS: EN61000-4-2,3,4,5,6,8,11, EN55024; levis industriae gradus, criteria A, EAC TP TC 020
	MTBF	5K hrs min. MIL-HDBK-217F (25℃)
POE funciton	Protocol	Compatible cum IEE802.3af/IEEE802.3at
	Genus Protocol	POE passivus / POE Active (libitum)
	POE pin	4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan vel 1245+ 3678-
	Data Speed	10/100/1000M/2.5G bps ( ad libitum )
Machanicals	DC PORT	2*RJ45 :10/100/1000Mbps, Portus 1: LAN, Portus 2: POE
	Dimension	84x46.99x37.1mm (LxWxH) obturaculum excludere
	stipare	100g; 100pcs/12.0Kg/0.056CBM
