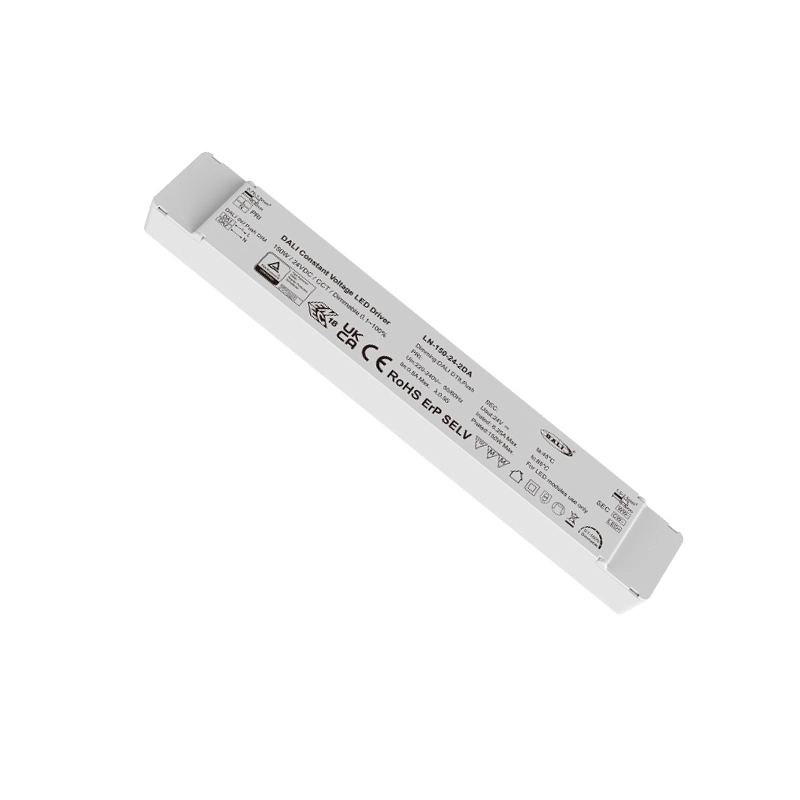

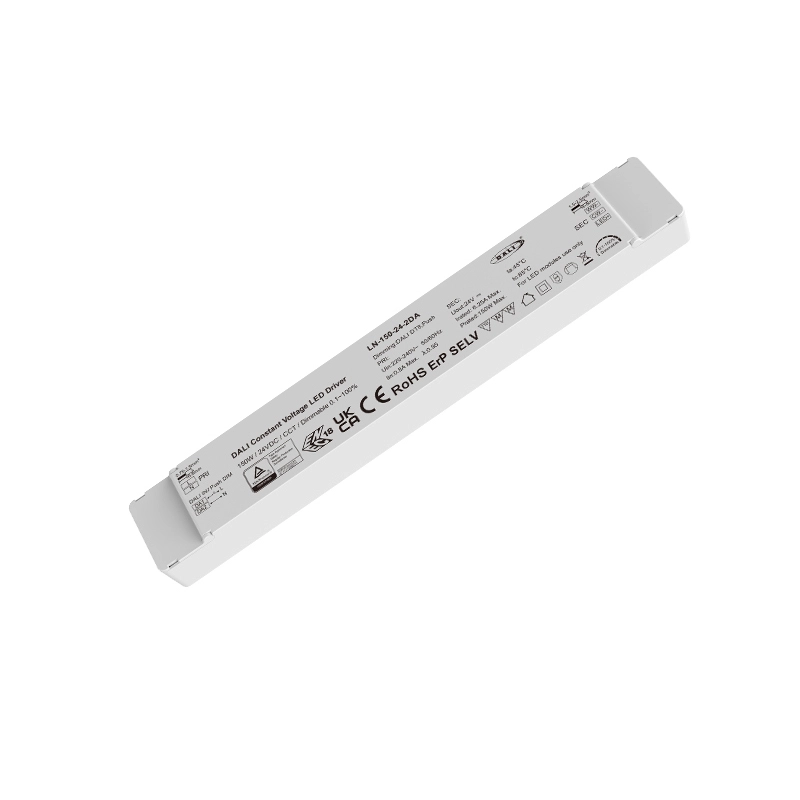

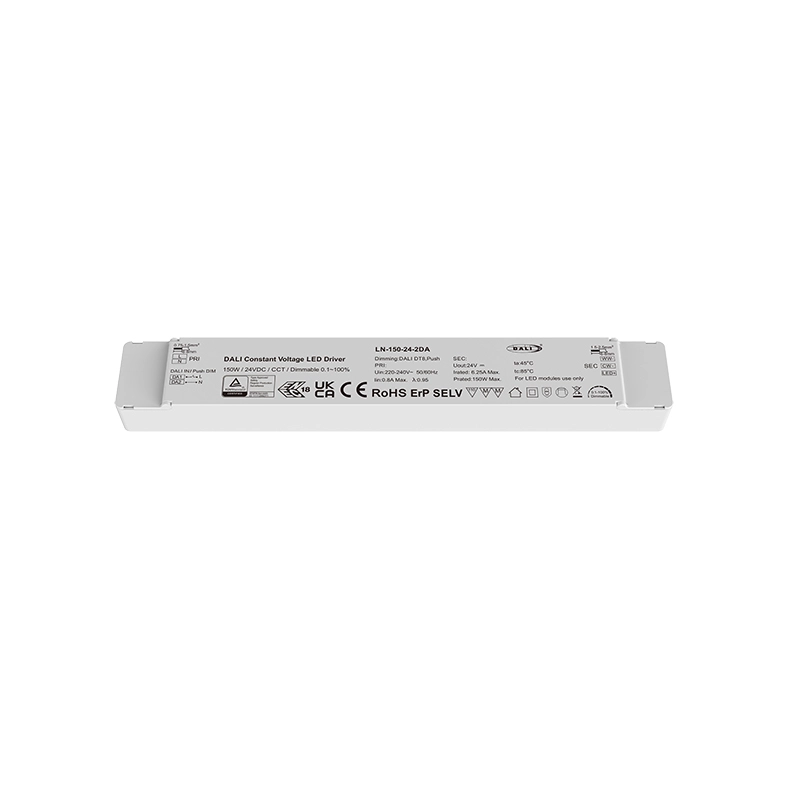

150W 24V DALI CCT Constant Voltage LED Driver

Starwell officinam venditionis calidae 150W 24V DALI CCT Constant Voltage LED Coegi sustinet independentem DALI CCT temperaturae colorum dualem commensurationem, qua subtilis moderatio splendoris et colori temperamentum ad diversa lucendi necessitates occurrit. Productum gloriatur 91% altum efficientiam, factorem potentiae (PF) > 0.95, humilis pravitatis harmonicae (THD) <10%, et ultra-humilis standum potentiae consummationis (≤ 0.5W), occurrens energiae CE-Erp efficientiae signa.

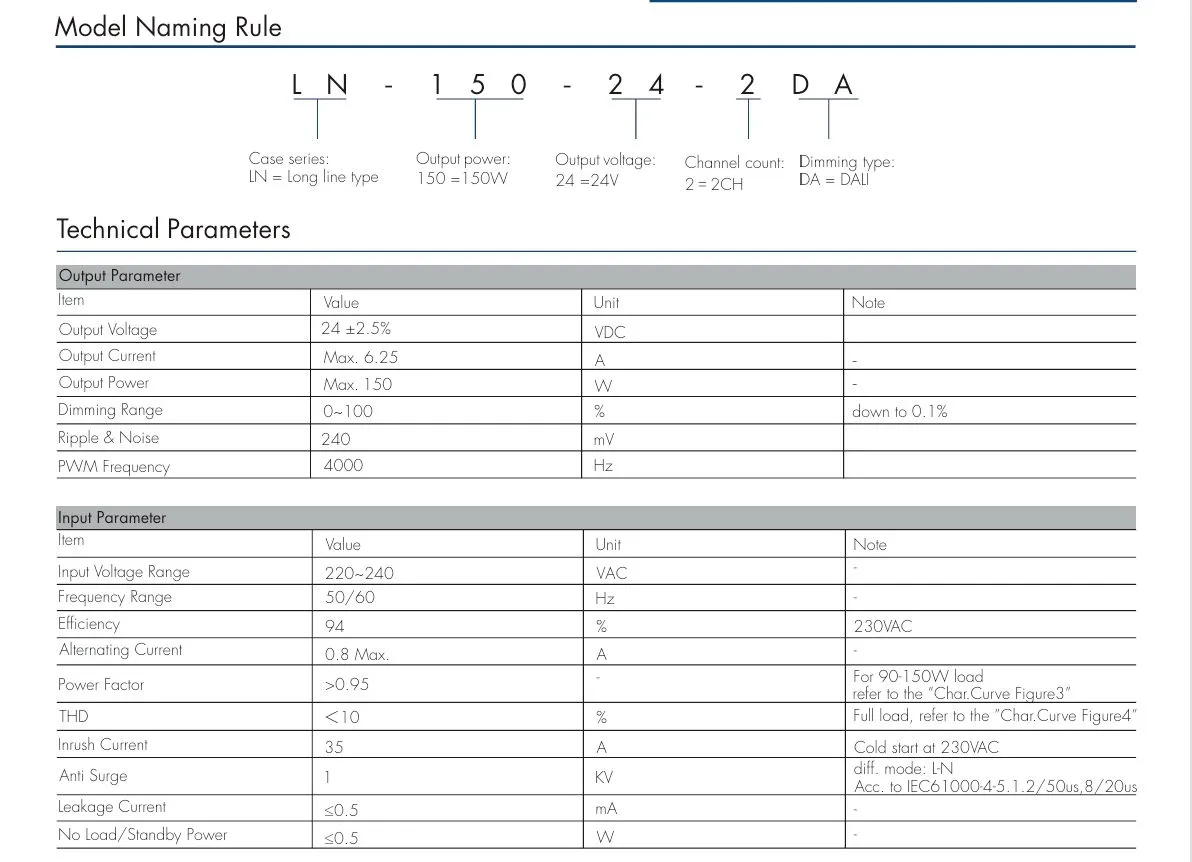

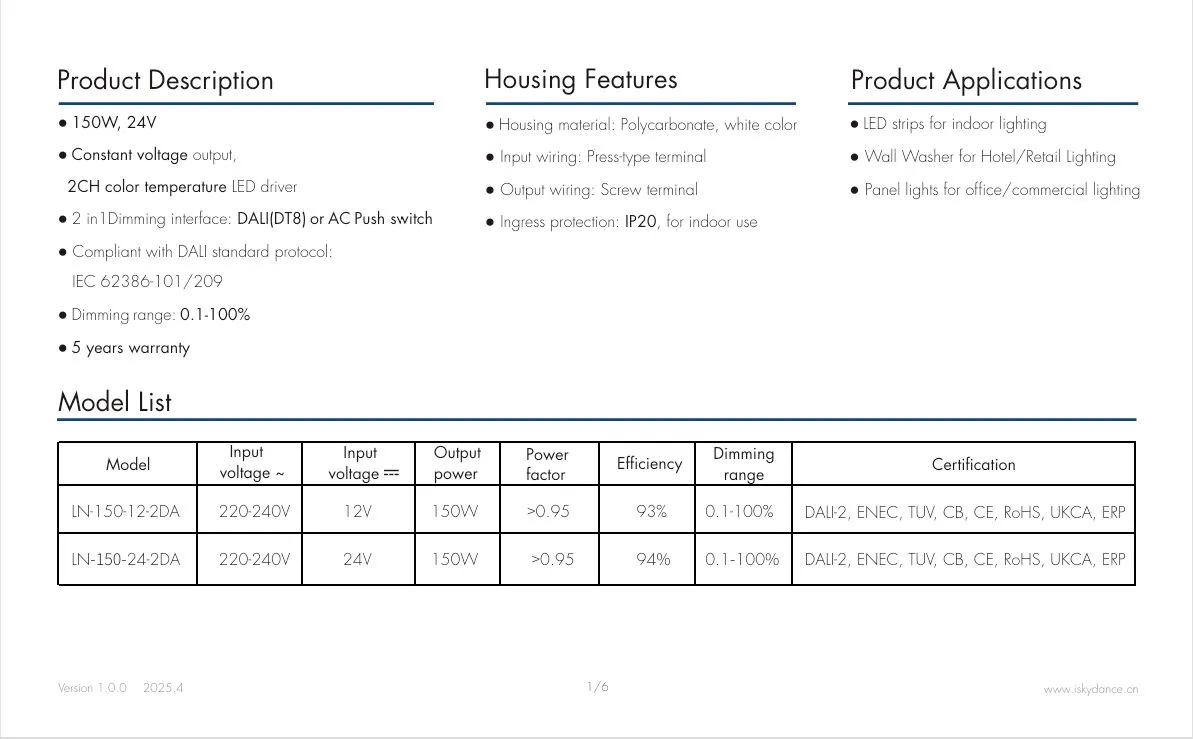

Product Specification

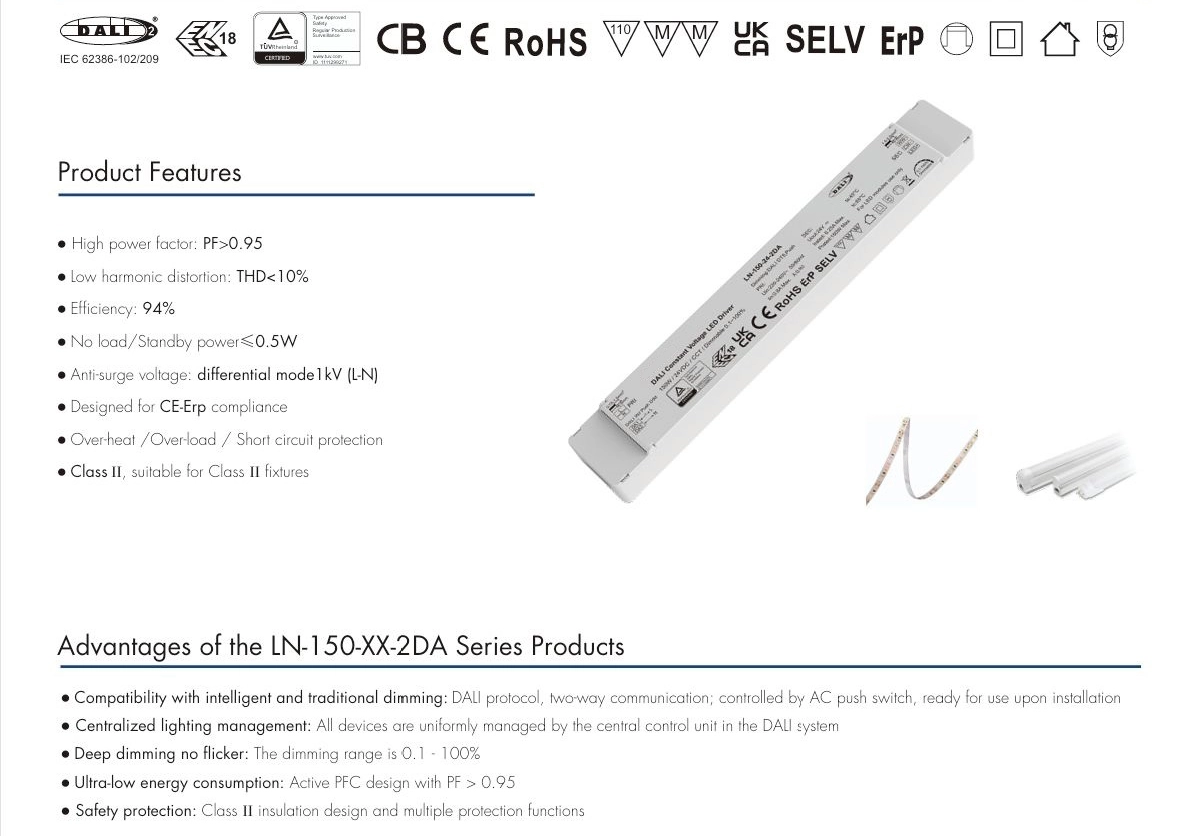

Product Features

Princeps potentiae factor: PF>0.95

Humilis Harmonic Distortio: THD

● Efficiency: 91%

● Parametri Flicker-liber: Pst LM≤1, SVM≤0.4

Non onus/Sto power≤0.5W

● Anti-surge voltage: mode1kV differentiale (L-N)

Designed for CE-Erp compliance

Plus calor / Plus-onus / Short circuitu praesidium

Apta Classis III adfixa

Basica insulatio:  Minima insulatio requiritur ad normalem instrumenti operationem, qui partes ageret e partibus accessibus (exempli gratia, conchas, partes quae corpus humanum attingi possunt) intercludere ne directus contactus cum electricis impulsus prohibeat.

Duplex insulatio:  150W 24V DALI CCT Coegi Constans Voltage DUCTUS constituitur ex insulatione fundamentali et adiectis velitationibus, ex duobus independentibus stratis tutelae velitationis formans, etsi unum iacuit deficiat, alter stratum adhuc electricum impetum prohibere potest.

Munus tutelae Plus Temperature:  Current decrementum cum PCB temp >100°C, automatice recuperat, postquam conditio culpae sublata est. Brevis Ambitus: Exclude intentionem output, statim post culpam recipit condicionem remota

Hebetans interface  0/1-10V obscuratio: extensio extensio 0-10V vel 1-10V, connector obscuratio currentis consummationis ≤ 0.3 mA, curvam obscurans refer ad "Char.curvam figuram 6-7", CCT curva refer ad "Char. curvam figuram 8". Ventilabium switch obscuratio est: intentio intentionis 220~240VAC 50/60Hz.

Dimming range: 0.1-100%

FAQ:

1. qui sumus?
Fundamur in Guangdong, Sinis, incipimus ab anno 2012, ad Europam Occidentalem (40.00%), Americam septentrionalem (20.00%), Europam septentrionalem (10.00%), Europam orientalem (10.00%), Europam orientalem (10.00%), Mediam Orientem (5.00%), Oceaniam (2.00%), Asiam Australem (2.00%), Americam Meridionalem (1.00%). Summa de 301-500 sunt homines in officio nostro.
2. Quomodo praestamus qualitatem?
Vestibulum semper ante massa, eget consequat massa semper a.
Semper finalis metus ante amet;
3. Quid emisti a nobis?
Dimmable DUXERIT Driver, DUXERIT Controller, Smart Home, OEM/ODM, DALI/DMX/Zigbee/Bluetooth
4. Cur a nobis non ab aliis praebitoribus emeris?
Nos semper prima ODM/OEM optio multarum notarum globalium ducum fuit. Cum nostra opulenta experientia et peritia in illustrandis systematibus ac technologiarum IoT moderandis, ut DALI, DMX 512, KNX, Zigbee, Z-Wave, Bluetooth, Wi-Fi, RF et etc.
5. Quibus officiis providere possumus?
Accepta Delivery Terms: FOB, CIF, EXW；
Accepta Payment Currency: USD, EUR, CAD, HKD, GBP;
Type: T/T;
Lingua locutus est: Anglice, Chinese
