0-10V Dimming Constant Voltage Duxit
  • 0-10V Dimming Constant Voltage Duxit0-10V Dimming Constant Voltage Duxit

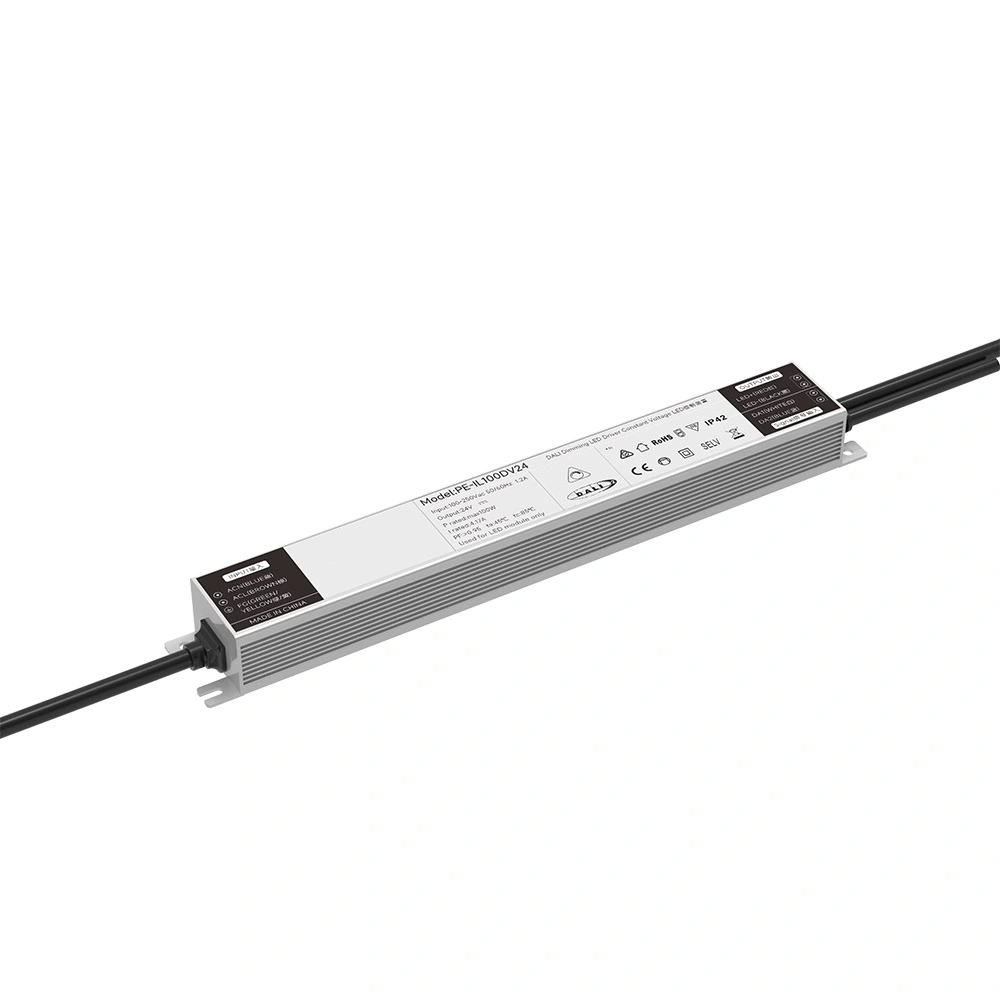

0-10V Dimming Constant Voltage Duxit

STARWELL officinas summus qualitas 100W 0-10V Dimming Constant Voltage Ducis Coegi machinatur ad applicationes professionales illustrandas accuratam potestatem et certas operationes requirentes. Comprehendit selectabilem 12V/24V DC output et industriam 0-10V obscurationis interfacies pro lenis, flammis liberorum claritatis temperatio a 100% usque ad 0%, compatibilis cum systematibus recentioribus obscurationis. Colit in aluminio robusto casis cum praesidio ingressu IP42 rating, hic auriga aedificatur ad vetustatem et calorem efficacem dissipationem in ambitibus tectis tectis ubi levii pulvis vel umoris minoris exponi potest. Consilium pacti faciliorem reddit institutionem in angustiis.

Mitte Inquisitionem

Ut professionalis Coegi fabricatorem in Sinis, STARWELL te praebere vellem CE-certificatum 0-10V Dimming Constans Voltage Ducis Coegi, cuius commoda praecipua sunt efficientiae, stabilis, et custodiae comprehensivae (circuitus brevis, nimis voltatio, nimis temperatura). Est specimen, vim solutionis sumptus-efficax pro amplis officinarum LED, inclusis luminibus habenis, signage, panels luminibus, ac low-voltage landscape lighting. Curemus qualitatem cum warantia comprehensive et technica subsidia dedicata.


Producere Features:

 1. Flicker-liberum dimming, super compatible cum rectoribus cupreis.

 2. Digital control, no flicker output.

 3. w AC input 100- 250 v range.

 4. Naturalis aeris refrigeratio, humoris probatio, caloris conductio, caloris siliconis dissipatio processus.

 5. Sui evoluta profundum dimensa curva.

 6. Multiplices tutelae munera.

 7. Processus speciales aluminii mixturae glutino, ultra-parvum volumen designat.

 8. ERP obsequentem, consummatio virtutis standby minus quam 0.5W


Starwell summus observantia Constans Voltage Dimmable Coegi Series machinatur ad liberandam eximiam potestatem ac fidem adhibendi mercaturae, industriae et architecturae applicationes. Available in 60W, 100W, et 150W potentiae ratings cum 12V vel 24V DC output-selectable, hic agitator versatilem perfectam vim solutionis praebet pro late ordinatae institutionum DUCTUS inclusis habena illuminationis, signage, scrinium illuminationis et illuminationis landscape.


Technical Features & Dimming Capabilities:

Constans Voltage 0-10v Dimmable Coegi intelligentes circumductio subsidia universalis congruentia obscurant per interfaces multiplices: 0-10V, 1-10V, PWM signum, et 100K potentiometer. Haec ampla compatibilitas efficit inconsutilem integrationem cum fere omnibus systematibus amet obscuratis in foro, a muris simplicibus dimmers ad structuram administrationis systematis sophisticati (BMS) ac professionalis moderaminis accensis (DALI, DMX portarum). Usus lenis, flammis-liberi perficientur per totam range extenuationem ab 100% ad 0% claritatem.

Reliability & Quality:

Ita confidimus de firmitate et observantia nostrorum rectorum ut eos reducemus cum industria ducens V-Year plena Warrantia.

Premium Components: Utilisation de facundis notae primae-ordinis et consilium prorsus remotum pro ultima salute et stabilitate.

Robusta Protectio: Comprehensiva praesidia inclusa super Load Tutela (OLP), super voltage Protection (OVP), Brevis Circuitus Praesidium (SCP), et Praesidium Temperature (OTP).

Superior euismod:  Maximum efficientiam (usque ad 90%), sonum humile & strepitus, ac optimum onus moderatio obtinet meliorem ducatur observantiam et longitudinis.



Applicationem & Ordering Information:

Series huius exactoris IP42 aestimanda est pro usu umbraticorum et in metallico compacto casui ad dissipationem efficacis caloris habiti. Pro accuratis specificationibus, describunt delineandi, et ut petat a competitive lutum quotations, pete, tange turmas nostras venditionesque. Praestet tibi solutionem virtutis certae, diuturnum solutionis virtutis.


Starwell Constans Voltage 0-10V Coegi Dimmabilis Ductus Specificatio:

Model

PE-IL100AV24

PE-IL100AV12

REFERO

Output intentione

24Vdc

12Vdc

Max Output Current

4.15Vdc

8.3A

Non-onus output intentione

24.4Vdc

12.2Vdc

Output Current

0-4.15A

0-8.3A

Output Power

0-100W

0-100W

Strobe Level

Non Flicker

Diming dolor

0~100% incipiunt ad 0.3% possibile.

PWM Dimming Frequency

>3600Hz

Current Accuracy

±3%

Potestatem in mode

Nullum signum maximam claritatis output

INPUT

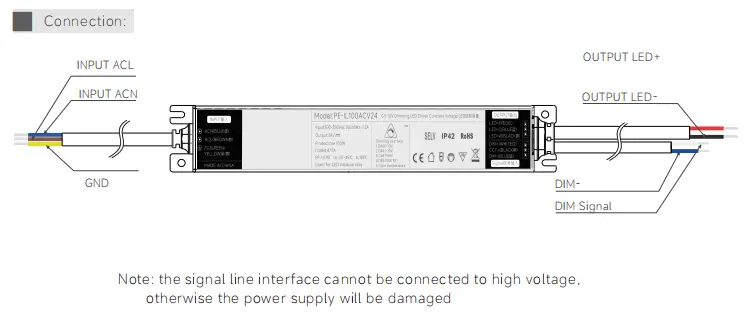

Obscuratio interface

0-10V 1-10V signum instrumenti currentis <2ma / CONATUS (P1 P2)

Input intentione dolor

100-250Vac

Frequentia

50/60Hz

Input Current

<1.2A ac100v

Potestas Factor

PF>0.98/100V ac (pleno onere)

THD

230Vac@THD <10% (pleno onere)

Efficacia (typ.)

91%

Incursus Current (typ.)

frigus initium 2A/760ns@230Vac

Anti Surge

L-N: 2kV

ultrices Current

<0.25mA/230Vac

ENVIRONMENT

Operatio Temperature

ta: -25 ad 45°C; tc: 85 °C

opus Umor

20 ~ 95% RH, non-condensans

Repono Temp., Umor

-40 ~ 80°C, 10~95% RH

Temp.Coefficient

±0.03%/°C(0-50)°C

Vibratio

10~500Hz, 2G 12min./1cyclus, periodus 72min. singulae per axes X, Y, Z.

PRAESIDIUM

Plus-calor Donec

Prudenter accommodans vel avertens in output current si PCB temperatus ≥110°C, , auto recuperat.

Super Lond Praesidium

Claudite output cum power≥102% aestimavit, auto recuperat.

Brevis Circuit Praesidium

Automatice claude, si brevis circuitus incidit, auto- rum recuperat.

Non onus Praesidium

output Constans Voltage.

SALUS & EMC

sustinere intentione

I/P-O/P: 3750Vac

Repugnantia solitudo

I/P-O/P: 100MΩ/500VDC/25°C/70%RH

Salus Signa

IEC/EN61347-1, IEC/EN61347-2-13

EMC Emission

EN55015, EN61000-3-2 Classis C, IEC61000-3-3

EMC immunitas

EN61000-4-2,3,4,5,6,8,11, EN61547

Strobe Test Standard

IEEE 1789

ALIIS'

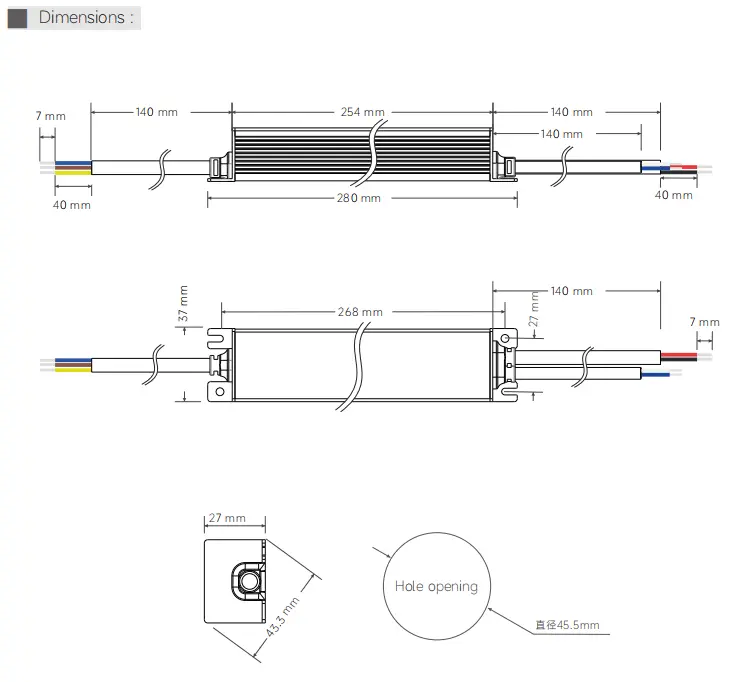

Dimension

280*37*27mm(L×W×H)

stipare

Box

Pondus(G.W.)

450g±10g


FAQ:

1. Quam de tuum qualitatis tuum?

    C% urere in tests, plena per tests circumiecta.

    Producta omnia a         CE RoHS,  aliqua producta tuv GS CB ETL testationes habent.

2.  Quam est tuum praestare? Et si me scelestum instrue, quo facies te facies ?

    3 annos. Si quid  iniuriam                                       In                 Si neque in proximo ordine tuo in tuo refuere.

3.  Qualem est tuum  minimam  quantitatem  ordinis?

    MOQ est 1pcs.

4. Quam pecuniam te trahere potest ?

    Nos T/T,  Unionem Occidentalem, Paypal, etc.

5.  Quae sunt navigationes tuorum oferre potest?

    Ab aere/mare/terra, ex Shenzhen portum, Hongkong, Guangzhou.

6.  Quam de tempore vestri partus ?

Sample: 3-7 dies pro ordine operando.

Ordo Missae: 18-25 diebus ferialibus

7.  Potesne OEM facere?

    Nimirum, OEM ODM providetur.

Plura, placet liberum contactus nos.
